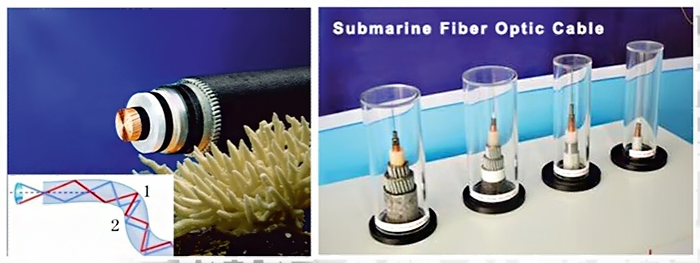

Under Water Type (Submarine) Steel Wire Armored Fiber Optic Cables

mark-CE-wht mark-RoHS-wht mark-ETL

Under Water Type (Submarine) Steel Wire Armored Fiber Optic Cables

General Information:

These type optical cables are installed for underwater / submarine,
Lake and River Crossing type installation with highly reliable and industrial applications.
These types of cables are designed for outside application and also it’s designed to protect optical fiber for the unexpected extra high mechanical and environmental conditions.
Qualification and acceptance testing are performed to assure the optical cable’s performance and durability in several environments.

Features and Benefits:

Fiber counts up to 144
Fibers per loose tube 1-12
Gel filled cable core for the water resistance
Its design for water resistance in customer request
Colored fiber for the quick identification
UV resistance for the outer sheath
High fiber count to diameter ratio,
Suitable for underwater installation,
Fully complies with international standards, TIA/EIA
Customer designs are available on request
Ripcord for easy strip outer sheath

Applications:

Telecommunication applications
Video applications
Data applications
CATV Transmission
Local Area Networks applications

Cable Weight & Diameter

Item	Number of Fiber	Fiber per Tube	Number of Tube	Number of Dummy Tube	Nom. Outer Diameter (mm)	Nom. Cable Weight (Kg/km)	Reel Length (Km)*
Double Steel Wire Armored Underwater Type Optical Cables	4	2	2	4	29,0	1.800	12
	6	2	3	3	29,0	1.800	12
	12	2	6	0	29,0	1.800	12
	24	4	6	0	29,0	1.800	12
	36	6	6	0	29,0	1.800	12
	48	8	6	0	29,0	1.800	12
	60	12	5	1	29,0	1.800	12
	72	12	6	0	29,0	1.800	12
	96	12	8	0	33,0	2.750	6
	144	12	12	0	36,0	3.150	6

Note: Central Strength member is FRP (Fiber Reinforced Plastic) , but steel wire also available on customer request.
(*) Other delivery length is available

Cable Construction:

Fiber
Thixotropic Jelly
Loose Tube
Steel Tube
Aramide Yarn
Inner Sheath
Creep Paper
Armored Steel Wire
Outer Sheath

Identification of Optical Fiber and Loose Tube

No

1

2

3

4

5

6

7

8

9

10

11

12 Fiber

Blue

Orange

Green

Red

Yellow

Violet

Brown

Black

White

Grey

Turquoise

Pink

Tubes

Blue

Orange

Green

Red

Yellow

Violet

Brown

Black

White

Grey

Turquoise

Pink

Mechanical & Environmental Characteristics:

ParamParameters

Tensile Strength IEC 60794-1-2-E1	Max. Opr.	80 KN 160 KN
Bending Radius(mm) IEC 60794-1-2-E11	Dynamic Static	15xD 10xD
Crush Resistance IEC 60794-1-2-E3	-------- --------	10 KN --------
Impact Resistance IEC-60794-1-2-E4	-------- --------	300 N --------
Operation Temperature IEC 60794-1-2-F1	Installing Operating	-30 +60 (°C) -40 +80 (°C)
Water Penetration IEC 60794-1-2 F5	24 hour, 1 meter No leakage	No leakage

Note: Special design for higher than given tensile load also available

Type Code of Optical Cable:

A-DF(ZN) 2Y SWA 2Y SWA 2Y mxn …..........N LG
Refer to the type code of the optical cables for the description of the cable code.

Optical Characteristics
Refer to the fiber data sheet

Length Marking On The Cable
The outer sheath will be marked in one meter intervals as follows;
RNM CABLE < Year of manufacturing >
< number and type of fiber >
< length marking in meter >

Color of Sheath and Material:

Outer sheath materials are MDPE-HDPE-LDPE and outer sheath color is black.

Packing:

Shipment will be done with non-returnable wooden drums with protection

RNM Cable Design Information:

Fiber Type SM 9/125 (G.652 d), SM 9/125(G.655 - NZDSF),
MM 62,5/125 – 50/125 Loose tube design
UV resistance Outer Sheath (MDPE,HDPE)
LSZH or HFFR Sheathing also possible in indoor applications Jelly Filled for Water resistance
Dry core design is also available on customer request
Dielectric Strength member (FRP) Peripheral Strength
Member is glass yarn or Aramide yarn (If necessary)
