Item | Number of Tube | Nom. Outer Diameter | Nom. Cable Weight Kg/km | Reel length km* |
Indoor/Outdoor Central Tube Cables | 2 | 9,5 | 85 | 2 |
4 | 9,5 | 85 | 2 | |
6 | 9,5 | 85 | 2 | |
8 | 9,5 | 85 | 2 | |
10 | 9,5 | 85 | 2 | |
12 | 9,5 | 85 | 2 |
(*) Other delivery length is available
Identification of Optical Fiber and Loose Tube
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
Fiber | Blue | Orange | Green | Red | Yellow | Violet | Brown | Black | White | Grey | Turquoise | Pink |
ParamParameters
Tensile StrengthIEC 60794-1-2-E1 | Max. | 800 N |
Bending Radius(mm) | Dynamic | 20xD |
Crush Resistance | -------- | 1000 N |
Impact Resistance | -------- | 50 N |
Operation Temperature | Installing | -30 +60 (°C) |
Water Penetration | 24 hour, 1 meter No leakage | No leakage |
A-DQ (BN) (SR) 2Y mxn …..N CT
Refer to the type code of the optical cables for the description of the cable code.
Length Marking On The Cable
The outer sheath will be marked in one meter intervals as follows;
RNM CABLE < Year of manufacturing >
< number and type of fiber >
< length marking in meter >
Inner/ Outer sheath materials are MDPE-HDPE-LDPE and outer sheath color is black. Other color can be applied in customer request
Shipment will be done with non-returnable wooden drums with protection
Fiber Type SM 9/125 (G.652 d), SM 9/125(G.655) ,
MM 62,5/125 – MM 50/125

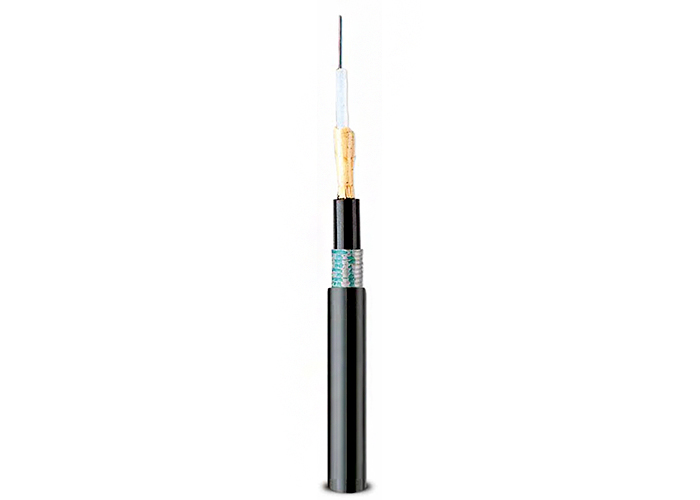

Central tube design (Single Loose Tube, SLT)
ISO/IEC 11801, EN50173, IEC 60794-1-2, IEC 60793, ITU-T 0652, G651
UV resistance Outer Sheath
LSZH or HFFR Sheathing also possible for indoor applications
Peripheral Strength Member is Glass yarn or Aramide yarn also possible per customer requests.21
