Item | Number of Fiber | Fiber per Tube | Number of Tube | Number of Dummy Tube | Nom. Outer Diameter | Nom. Cable Weight (Kg/km) | Reel Length |
ADSS Type Fiber Optic Cables | 4 | 2 | 2 | 4 | 14,5 | 160 | 6 |
6 | 2 | 3 | 3 | 14,5 | 160 | 6 | |
10 | 2 | 5 | 1 | 14,5 | 160 | 6 | |
12 | 2 | 6 | 0 | 14,5 | 160 | 6 | |
24 | 4 | 6 | 0 | 14,5 | 160 | 6 | |
36 | 6 | 6 | 0 | 14,5 | 160 | 6 | |
48 | 8 | 6 | 0 | 14,5 | 160 | 6 | |
60 | 12 | 5 | 1 | 14,5 | 160 | 6 | |
72 | 12 | 6 | 0 | 14,5 | 160 | 6 | |
96 | 12 | 8 | 0 | 16,5 | 210 | 4 | |
144 | 12 | 12 | 0 | 20,0 | 330 | 4 | |
192 | 16 | 12 | 2 | 22,5 | 450 | 4 |
(*) Other delivery length is available
No | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
Fiber | Blue | Orange | Green | Red | Yellow | Violet | Brown | Black | White | Grey | Turquoise | Pink |
Tubes | Blue | Orange | Green | Red | Yellow | Violet | Brown | Black | White | Grey | Turquoise | Pink |
ParamParameters
Tensile Strength | Max. | 14.000 N |
Bending Radius(mm) | Dynamic | 20xD |
Crush Resistance | -------- | 4000 N |
Impact Resistance | -------- | 50 N |
Operation Temperature | Installing | -30 +60 (°C) |
Water Penetration | 24 hour, 1 meter No leakage | No leakage |
Span length (m) | Max. | 150 |
Note: Special design for higher than given tensile load also available
A-DF(ZN) 2Y (B) 2Y mxn …..........N LG
Refer to the type code of the optical cables for the description of the cable code.
Length Marking On The Cable
The outer sheath will be marked in one meter intervals as follows;
RNM CABLE < Year of manufacturing >
< number and type of fiber >
< length marking in meter >
Inner / Outer sheath materials are MDPE-HDPE-LDPE and outer sheath color is black. Another color can be applied per customer request.
Shipment will be done with non-returnable wooden drums with protection

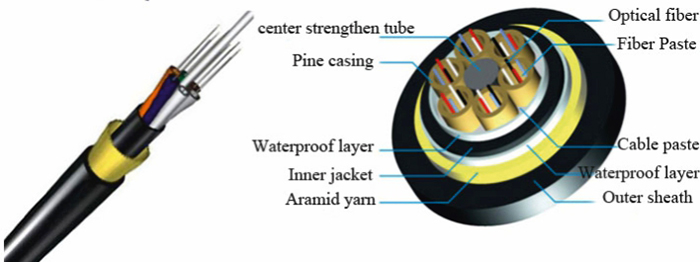

Fiber Type SM 9/125 (G.652 d), SM 9/125(G.655),
MM 62,5/125 – MM 50/125 Loose tube design
UV resistance Outer Sheath (MDPE, HDPE)
Jelly Filled for Water resistance
Dry core design is also available on customer request
Dielectric Strength member (FRP)
Peripheral Strength Member is Aramid yarn
