Dome Mechanical Seal Fiber Optic Splice Closure(FOSC)

Features:

The closure adopts heat shrinkable sealing structure. There is one big oval shaped inlet/outlet port in base.
The big oval shaped port is used for the sealing of uncut straight-through fiber cable, the small ports are used for branch fiber cable and drop cable.
It adopts engineering PC plastic with high-strength to make the closure has longer life and excellent time sealing performance.
The patented sealing structure keep good sealing performance after re-entry and re-using.
It is without cable fixing device.
The bending radius of FOSTs meet the international standard. It could save the installation time and improve work efficiently.

Applications:

Suitable for bunchy & ribbon fibers
Aerial, underground, wall-mounting, hand hole-mounting pole-mounting and duct-mounting

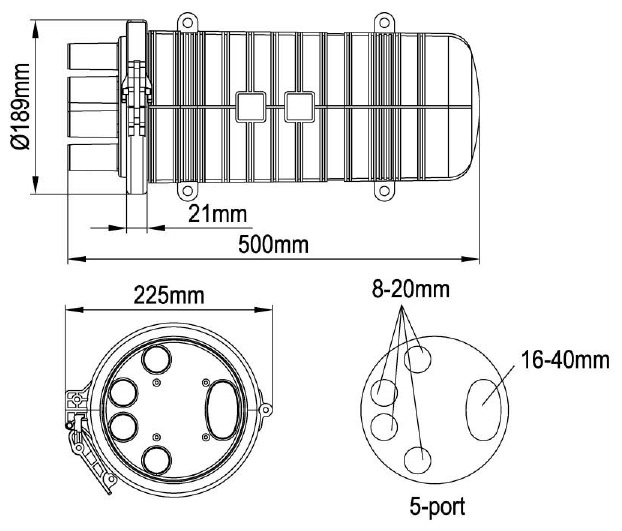

Structural Drawing:

79-ic01

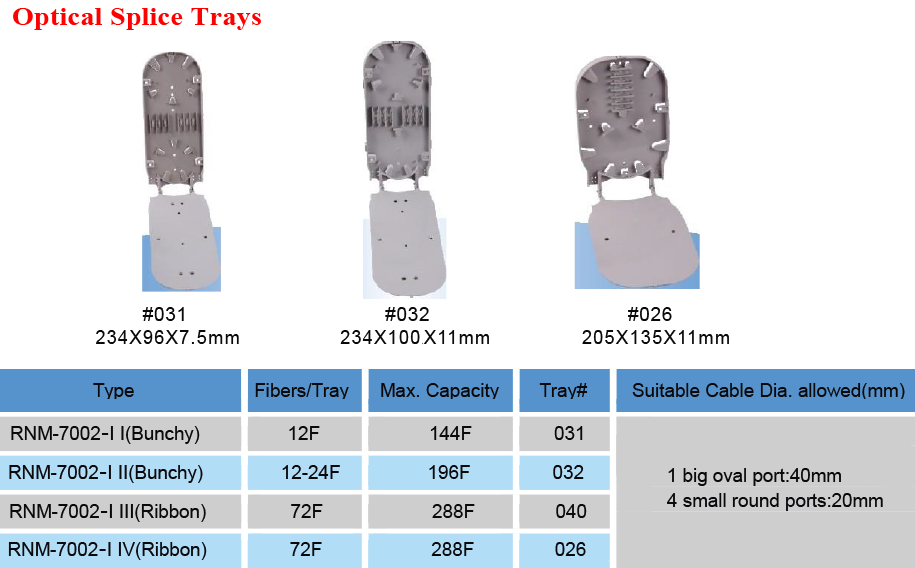

Ordering Information:

79-ic02a

Accessories:

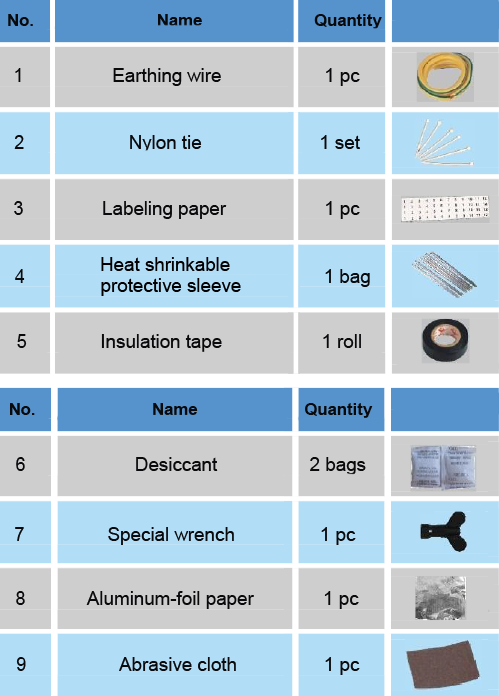

Standard Accessories

79-ic03a

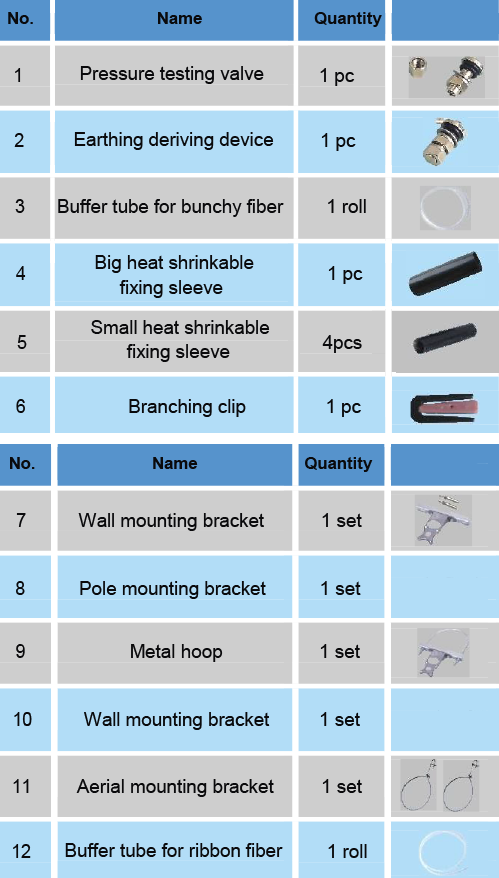

Optional Accessories

79-ic03b
